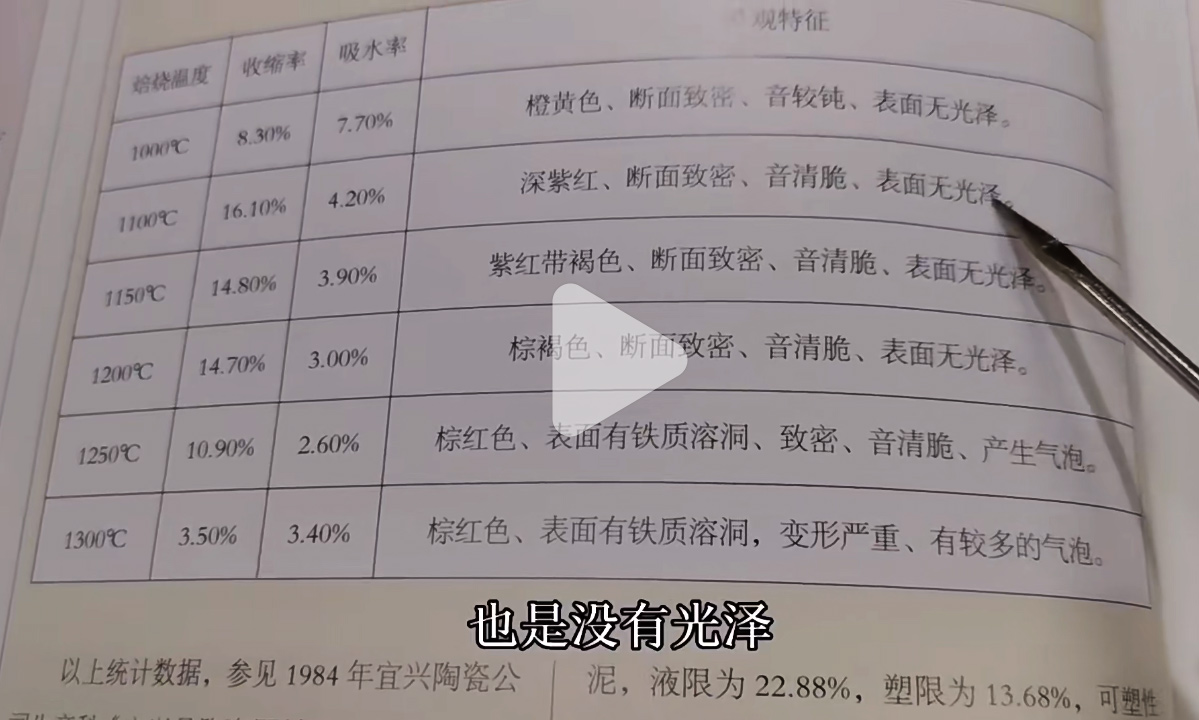

The clay here is called jiani, it’s found in various layers along with other yixing clay (but not used for teapots). The translation of this video screen capture (below), provides a fascinating insight into how they judge the suitable temperature at which to fire. First, technicians measure the porosity and firing shrinkage over a range of temperatures, likely looking for a firing "sweet spot". Notice shrinkage reaches a maximum at 1100C, then drops off as the clay begins to expand. But this is not the only thing considered. Notice, in the comments, that they are also looking for "surface luster" (which is not found). They also comment about a "dull sound" and "crisp/clear sound" (so they must create a sounding vessel of some sort). They also break a fired piece and comment of the nature of the cross section, revealing something else interesting: The clay holds on to a dense cross section for 100C degrees after reaching maximum fired shrinkage.
| Temp | Shrinkage | Porosity | Visual & Physical Characteristics |
|---|---|---|---|
| 1000°C | 8.3% | 7.7% | Orange-yellow, dense cross-section, relatively dull sound, matte surface (no luster). |
| 1100°C | 16.1% | 4.2% | Deep purplish-red, dense cross-section, crisp/clear sound, matte surface (no luster). |
| 1150°C | 14.8% | 3.9% | Purplish-red with a hint of brown, dense cross-section, crisp/clear sound, matte surface (no luster). |
| 1200°C | 14.7% | 3.0% | Brownish-red, dense cross-section, crisp/clear sound, matte surface (no luster). |
| 1250°C | 10.9% | 2.6% | Brownish-red, iron-rich melt-holes on the surface, dense, crisp/clear sound, produces bloating/bubbles. |
| 1300°C | 3.5% | 3.4% | Brownish-red, iron-rich melt-holes on the surface, severe deformation, has a relatively large amount of bloating/bubbles. |

This picture has its own page with more detail, click here to see it.
These bars of a locally collected wild clay were fired, from bottom to top, at cones 2, 6, 8 and 10. At cone 2, the clay has already vitrified to stoneware density while retaining a reddish colour—well above the usual cone 06–04 terra cotta firing range. Additional tests, not shown here, reveal that it turns brown by cone 3 and begins to soften and bloat by cone 4. By cone 6, the second bar from the bottom has an “Aero chocolate bar” interior! Gas-producing reactions within the softening body expand it into a ceramic foam.
At cones 8 and 10, the bars are severely swollen and glassy, yet still recognizably bar-shaped. Why haven’t they flowed into puddles? Even with extensive melting, the material surrounding the bubbles remains viscous enough to resist collapse. This clay demonstrates that vitrification, bloating and flowing freely are very different stages of firing.

This picture has its own page with more detail, click here to see it.
This is an extreme example of firing a clay at many temperatures to get a wide-angle view of it. These SHAB test bars characterize a terra cotta body, L4170B. While it has a wide firing range, its "practical firing window" is much narrower than these fired bars and the graph suggest. On paper, cone 5 hits zero water absorption. And, in hand, the bar feels like a porcelain. But ware warps during firing, and transparent glazes will be completely clouded with bubbles (when pieces are glazed inside and out). What about cone 3? Its numbers put it in stoneware territory, watertight. But decomposition gases still bubble glazes! Cone 2? Much better; it has below 4% absorption (any fitted glaze will make it watertight), below 6% fired shrinkage, still very strong. But there are still issues: Accidental overfiring drastically darkens the color. Low-fire commercial glazes may not work at cone 2. How about cone 02? This is a sweet spot. This body has only 6% absorption (compared to the 11% of cone 04). Most low-fire cone 06-04 glazes are still fine at cone 02. And glaze bubble-clouding is minimal. What if you must fire this at cone 04? Pieces will be "sponges" with 11% water absorption, shrinking only 2% (for low density, poor strength). There is another advantage of firing as high as possible: Glazes and engobes bond better. An example of a low-fire transparent base that works fine on this up to cone 2 is G1916Q.
| Projects |
Yixing Teapots
Hao-Tong Yan, a Yixing teapot craftsmen, and I have been trying to understand the technical reasons for how this amazing craft is possible. It is a fascinating story that culminates in the possibility of making your own Yixing-like clay body. |
