Monthly Tech-Tip from Tony Hansen SignUp

No tracking! No ads!That's why this page loads quickly!

200 mesh | 325 mesh | 3D Design | 3D Printer | 3D Slicer | 3D-Printed Clay | 3D-Printing | Abrasion Ceramics | Acidic Oxides | Agglomeration | Alkali | Alkaline Earths | Amorphous | Apparent porosity | Ball milling | Bamboo Glaze | Base Glaze | Base-Coat Dipping Glaze | Basic Oxides | Batch Recipe | Bisque | Bit Image | Black Coring | Bleeding colors | Blisters | Bloating | Blunging | Bone China | Borate | Boron Blue | Boron Frit | Borosilicate | Breaking Glaze | Brushing Glaze | Calcination | Calculated Thermal Expansion | Candling | Carbon Burnout | Carbon trap glazes | CAS Numbers | Casting-Jiggering | Celadon Glaze | Ceramic | Ceramic Binder | Ceramic Decals | Ceramic Glaze | Ceramic Glaze Defects | Ceramic Ink | Ceramic Material | Ceramic Oxide | Ceramic Slip | Ceramic Stain | Ceramic Tile | Ceramics | Characterization | Chemical Analysis | Chromaticity | Clay | Clay body | Clay Body Porosity | Clay for Ovens and Heaters | Clay Stiffness | Co-efficient of Thermal Expansion | Code Numbering | Coil pottery | Colloid | Colorant | Cone | Cone 1 | Cone 5 | Cone 6 | Cone plaque | Copper Red | Cordierite Ceramics | Crackle glaze | Crawling | Crazing | Cristobalite | Cristobalite Inversion | | Crystalline glazes | Crystallization | Cuerda Seca | Cutlery Marking | De-Airing Pugmill | Decomposition | Deflocculation | Deoxylidration | Digitalfire Foresight | Digitalfire Insight | Digitalfire Reference Library | Dimpled glaze | Dip Glazing | Dipping Glaze | Dishwasher Safe | Dolomite Matte | Drop-and-Soak Firing | Drying Crack | Drying Performance | Drying Shrinkage | Dunting | Dust Pressing | Earthenware | Efflorescence | Encapsulated Stain | Engobe | Eutectic | Fast Fire Glazes | Fat Glaze | Feldspar Glazes | Firebrick | Fireclay | Fired Strength | Firing Schedule | Firing Shrinkage | Flameware | Flashing | Flocculation | Fluid Melt Glazes | Flux | Food Safe | Foot Ring | Forming Method | Formula Ratios | Formula Weight | Frit | Fritware | Functional | GHS Safety Data Sheets | Glass vs. Crystalline | Glass-Ceramic Glazes | Glaze Bubbles | Glaze Chemistry | Glaze Compression | Glaze Durability | Glaze fit | Glaze Gelling | Glaze Layering | Glaze Mixing | Glaze Recipes | Glaze Shrinkage | Glaze thickness | Globally Harmonized Data Sheets | Glossy Glaze | Green Strength | Grog | Gunmetal glaze | Handles | High Temperature Glaze | Hot Pressing | Incised decoration | Industrial clay body | Ink Jet Printing | Inside-only Glazing | Insight-Live | Interface | Iron Red Glaze | Jasper Ware | Jiggering | Kaki | Kiln Controller | Kiln Firing | Kiln fumes | Kiln venting system | Kiln Wash | Kovar Metal | Laminations | Leaching | Lead in Ceramic Glazes | Leather hard | Lime Popping | Limit Formula | Limit Recipe | Liner Glaze | LOI | Low Temperature Glaze Recipes | Lustre Colors | Majolica | Marbling | Material Substitution | Matte Glaze | Maturity | Maximum Density | MDT | Mechanism | Medalta Potteries | Medium Temperature Glaze | Melt Fluidity | Melting Temperature | Metal Oxides | Metallic Glazes | Micro Organisms | Microwave Safe | Mineral phase | Mineralogy | Mocha glazes | Mohs Hardness | Mole% | Monocottura | Mosaic Tile | Mottled | Mullite Crystals | Native Clay | Non Oxide Ceramics | Oil-spot glaze | Once fire glazing | Opacifier | Opacity | Ovenware | Overglaze | Oxidation Firing | Oxide Formula | Oxide Interaction | Oxide System | Particle orientation | Particle Size Distribution | Particle Sizes | PCE | Permeability | Phase Diagram | Phase Separation | Physical Testing | Pinholing | Plainsman Clays | Plaster Bat | Plaster table | Plasticine | Plasticity | Plucking | Porcelain | Porcelaineous Stoneware | Pour Glazing | Precipitation | Primary Clay | Primitive Firing | Production Setup | Propane | Propeller Mixer | Pyroceramics | Quartz Inversion | Raku | Reactive Glazes | Reduction Firing | Reduction Speckle | Refiring Ceramics | Refractory | Refractory Ceramic Coatings | Representative Sample | Respirable Crystalline Silica | Restaurant Ware | Rheology | Rutile Glaze | Salt firing | Sanitary ware | Sculpture | Secondary Clay | Shino Glazes | Shivering | Sieve | Silica:Alumina Ratio | Silk screen printing | Sintering | Slaking | Slip Casting | Slip Trailing | Slurry Up | Soaking | Soluble colors | Soluble Salts | Specific gravity | Splitting | Spray Glazing | Stain Medium | Stoneware | Stull Chart | Sulfate Scum | Sulfates | Surface Area | Surface Tension | Suspension | Tapper Clay | Tenmoku | Terra cotta | Terra Sigilatta | Test Kiln | Theoretical Material | Thermal Conductivity | Thermal shock | Thermocouple | Thixotropy | Tony Hansen | Toxicity | Trafficking | Translucency | Transparent Glazes | Triaxial Glaze Blending | Ultimate Particles | Underglaze | Unity Formula | Upwork | Variegation | Viscosity | Vitreous | Vitrification | Volatiles | Warping | Water in Ceramics | Water Smoking | Water Solubility | Wedging | Whiteware | Wood Ash Glaze | Wood Firing | Zero3 | Zeta Potential


In ceramics, potters make crucibles to melt frits, stains and other materials. Crucibles are made from refractory materials that are stable against the material being melted in them.


Crucibles are most commonly used in metallurgy but are also important in ceramics. Potters and industrial manufacturers make crucibles to melt frits and calcine stains and other materials.

Crucibles must, of course, have a much higher melting point than the material being melted (or otherwise processed) inside of them. This resistance to temperature takes precedence over any other desirable property. The refractory character also imparts physical rigidity. Crucibles also must be resistant to corrosion of the material being processed (especially if it becomes highly fluid) so that it cannot dissolve its way through vessel walls. Be sure to do tests on smaller melts before attempting a new-material melt in a big crucible.

Another huge issue is thermal shock. Crucibles are often thick-walled and heavy, thus, by nature they are susceptible to cracking if exposed to rapid temperature changes. So, by necessity care must be used when heating and cooling them. Ideally crucibles should be made from a material having a good resistance to thermal shock, but this is not always practical (e.g. alumina, zircon are extremely refractory but do not have good thermal shock resistance). If a sudden temperature change causes a crack while the material inside is still molten you have a definite problem! In industry, crucibles are often held at temperature for their entire lifetime of use so as to avoid cracking during cooling and heating.

You can easily make your own crucibles from materials that have a high melting point, prefiring them as far above the service temperature as possible. Simple fire clay is commonly employed. However be sure the fireclay you use can withstand the temperature (just because something is called "a fireclay" does not necessarily mean it actually is). Fireclays are often high in quartz so thermal shock resistance will be poor. Fireclays may not fire as dense as needed, thus will have some porosity. Fireclays can also contain iron particles and soluble salts that have the potential to contaminate certain melts.

Super duty crucibles can be made from pure alumina oxide or zircon, these are available at any ceramic supplier. They are non-plastic by nature, but when processed to sufficiently small particle size they can be surprisingly formable and castable (zircon opacifier is very fine, and so are common grades of alumina). Binders (e.g. bentonite, smectite) can also be add to make them plastic enough for forming (or even throwing on a potters wheel).

Kaolin, ball clay and silica are the most commonly available ceramic materials and they are all very refractory (because of their purity). Just about any mix of them if more refractory than almost any fireclay. Actually, most fireclay are just coarsely ground ball clays. And equal part mix of the three produces a body of great workability and is highly refractory. But, such a body does not have good thermal shock resistance. Porcelain is a common crucible material, it employ these three materials and adds enough feldspar to produce some vitrification. Other materials can be incorporated also (e.g. mullite, alumina, pyrophyllite, zirconium silicate). In all of these, the silica portion should be as fine as possible to aid in the formation of silicates (minimizing the amount of residual unreacted quartz particles).

As noted, a crucible being refractory has nothing to do with its thermal expansion. True, thermal shock resistance in a crucible is had in ware that is sintered, not vitrified or melted. And it is the thermal expansion characteristics of the individual grains that determine that of the whole vessel. For low expansion, the material-of-choice is tabular alumina. Its particle size distribution will determine the density and collective particle bonding. Binders are needed to form it, but are kept to a minimum. Of course, the vast majority of companies and potters do not have kilns that can fire high enough to sinter-bond pieces, so a compromise is often in order: Fire-bonding the particles with a low expansion flux, perhaps small amounts of borax or a frit (e.g. Ferro 3249).

Cordierite is very refractory and has very good thermal shock properties and could be an ideal crucible solution for many types of melts. For others it may not be as resistant to attack by the melt. However the formation of cordierite crystals in the kiln is also beyond the temperatures achievable in most production or pottery kilns.

A good way to determine a crucible body recipe is to go the websites that sell crucibles for the purpose you need. They will have information in their descriptions that we tell you what they make them from.

Related Information

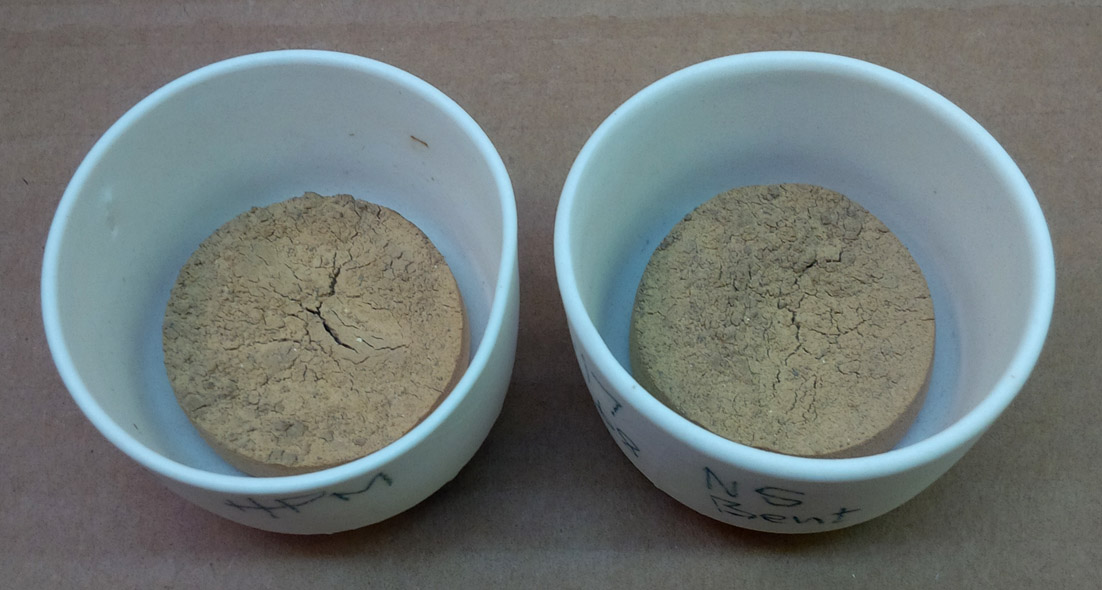

Making your own crucibles

I mixed a cone 6 porcelain body and a cone 6 clear glaze 50:50 and added 10% Mason 6666 black stain. The material was plastic enough to slurry, dewater and wedge like a clay, so I dried a slab and broke it up into small pieces. I then melted them at cone 6 in a zircopax crucible (I make these by mixing alumina or zircopax with veegum and throwing them on the wheel). Because this black material does not completely melt it is easy to break the crucible away from it. As you can see no zircon sticks to the black. I then break this up with a special flat metal crusher we made, size them on sieves and add them to glazes for artificial speckle. As it turned out, this mix produced specks that fused too much, so a lower percentage of glaze is needed. I can thus fine tune the recipe and particle size to theoretically duplicate the appearance of reduction speckle.


Materials Calcined Alumina
Materials Zircon
Glossary Fireclay
In the ceramics industry, clays that are resistant to deforming and melting at high temperatures are called fireclays. Kiln bricks are often made from fireclay.
Glossary Cordierite Ceramics
In the ceramic industry, cordierite is a man-made refractory crystalline material having extremely low thermal expansion.

By Tony Hansen

Tell Us How to Improve This Page

Or ask a question and we will alter this page to better answer it.

Email Address





Leave the following empty, All Rights Reserved
Privacy Policy
