Lincoln 60 Fireclay

Dark buff-firing plastic stoneware

OxideAnalysisFormula
CaO0.20%0.011
MgO0.60%0.047
K2O0.75%0.025
Na2O0.30%0.015
Al2O332.50%1.000
SiO252.00%2.715
Fe2O32.20%0.043
LOI11.20
Oxide Weight277.91
Formula Weight312.96
If this formula is not unified correctly please contact us.
SADR - Sieve Analysis Dry +35 mesh: 3.5 35-48: 3.0 48-65: 4.0 65-100: 3.5 100-150: 3.5 150-200: 4.0 200-325: 5.0
PCE - Pyrometric Cone Equivalent 31 (claimed)
WABS - Water absorption Cone 6: 3.0% Cone 7: 2.5 Cone 8: 1.5 Cone 10: 0.2
FSHR - Firing Shrinkage Cone 6: 7.5% Cone 7: 8.0% Cone 8: 8.5% Cone 10: 8.0%
DSHR - Drying Shrinkage 5.5-6.0% @ 27% water

It was first used in the late 1800s by Gladding McBean to make sewer pipe, subsequently for a wide range of architectural purposes. It is also used as a major ingredient in many commercial west coast USA stoneware and middle and high fire pottery clay and sculpture bodies. This material is very smooth and has a unique feel that many potters can recognize with their eyes closed!

Although this material is known as a fireclay, it completely vitrifies by cone 10 (where it is near zero porosity). it's porosity decreases steadily from cone 6 to 10, but it is beginning to bloat at cone 11. However, the fired shrinkage increases until cone 8 after which it bars begin to expand (indicating over firing).

Lincoln clay has several other very unusual properties also:
-It has excellent drying properties (resistance to cracking) even though it has high plasticity. It's drying shrinkage is below 6%.
-It is very plastic like a ball clay yet it feels like a kaolin (it is not sticky as are other clays of the same plasticity).
-27% water is required to make the Lincoln clay plastic enough to work for pottery (whereas a typical plastic pottery clay body is 20-22%). Yet it still has a fairly low during shrinkage! This is very unusual.

Variation in the physical and fired properties of this material have been a concern with its use in pottery. Its sieve analysis also varies considerably by batch.

This unique combination of firing behavior and workability made this an ideal material for making vitrified unglazed sewer pipe. Those same properties make it possible to create a pottery body having a very high percentage of this material (90% is feasible). However it is customary to dilute it into a recipe of other clays, many or all of which are more refractory. For this reason recipes will often contain feldspar (which would not be needed if using pure Lincoln fireclay as a body).

The ZAM stoneware pottery clay body has been made for many years by various manufacturers on the west coast. It is:

15 Hawthorn fireclay
10 Lincoln fireclay
40 Goldart
15 Ball clay
10 Silica
7 Feldspar
3 Redart
8 Grog or Sand

Another example is Soldner's Raku which is:
50 Lincoln fire clay
30 sand, all mesh
20 talc

Imco 400 Fireclay is similar to this material.


Is Lincoln 60 really a fireclay? Simple physical testing says...

Is Lincoln 60 really a fireclay? Simple physical testing says...

Materials are not always what their name suggests. These are Lincoln Fireclay test bars fired from cone 6-11 oxidation and 10 reduction (top). The clay vitrifies progressively from cone 7 upward (3% porosity at cone 7 to 0.1% by cone 10 oxidation and reduction, bloating by cone 11). Is it a really fireclay? No.

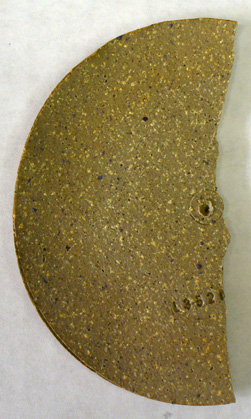

A fireclay that is not really a fireclay!

A fireclay that is not really a fireclay!

This is a Lincoln 60 fireclay drying disk (that has been fired to cone 10R). It has near zero-porosity and is dense and very strong. It is like a stoneware clay, quite vitreous.

Out Bound Links

In Bound Links


By Tony Hansen

XML for Import into INSIGHT

<?xml version="1.0" encoding="UTF-8"?> <material name="Lincoln 60 Fireclay" descrip="Dark buff-firing plastic stoneware" searchkey="" loi="0.00" casnumber="70694-09-6"> <oxides> <oxide symbol="CaO" name="Calcium Oxide, Calcia" status="" percent="0.200" tolerance=""/> <oxide symbol="MgO" name="Magnesium Oxide, Magnesia" status="" percent="0.600" tolerance=""/> <oxide symbol="K2O" name="Potassium Oxide" status="" percent="0.750" tolerance=""/> <oxide symbol="Na2O" name="Sodium Oxide, Soda" status="" percent="0.300" tolerance=""/> <oxide symbol="Al2O3" name="Aluminum Oxide, Alumina" status="" percent="32.500" tolerance=""/> <oxide symbol="SiO2" name="Silicon Dioxide, Silica" status="" percent="52.000" tolerance=""/> <oxide symbol="Fe2O3" name="Iron Oxide, Ferric Oxide" status="" percent="2.200" tolerance=""/> </oxides> <volatiles> <volatile symbol="LOI" name="Loss on Ignition" percent="11.200" tolerance=""/> </volatiles> </material>
