Gleason Ball Clay

Fine grainding plastic ball clay

OxideAnalysisFormula
CaO0.09%0.006
MgO0.04%0.004
K2O0.32%0.013
Na2O0.07%0.004
P2O50.11%0.003
TiO21.48%0.072
Al2O326.28%1.000
SiO258.80%3.797
Fe2O31.41%0.034
MnO0.01%0.001
LOI11.60
SO30.02
Oxide Weight343.92
Formula Weight389.14
Enter the formula and formula weight directly into the Insight MDT dialog (since it records materials as formulas).
Enter the analysis into an Insight recipe and enter the LOI using Override Calculated LOI (in the Calc menu). It will calculate the formula.

The manufacturer describes it as a fine-grained engineered blend offering excellent bonding and forming characteristics. Ideally suited for extrusion, dry and wet pressing applications. This material is an alternative to, for example, OM#4, it has a lower coal content and fires a little lighter in color.


Out Bound Links


Pictures

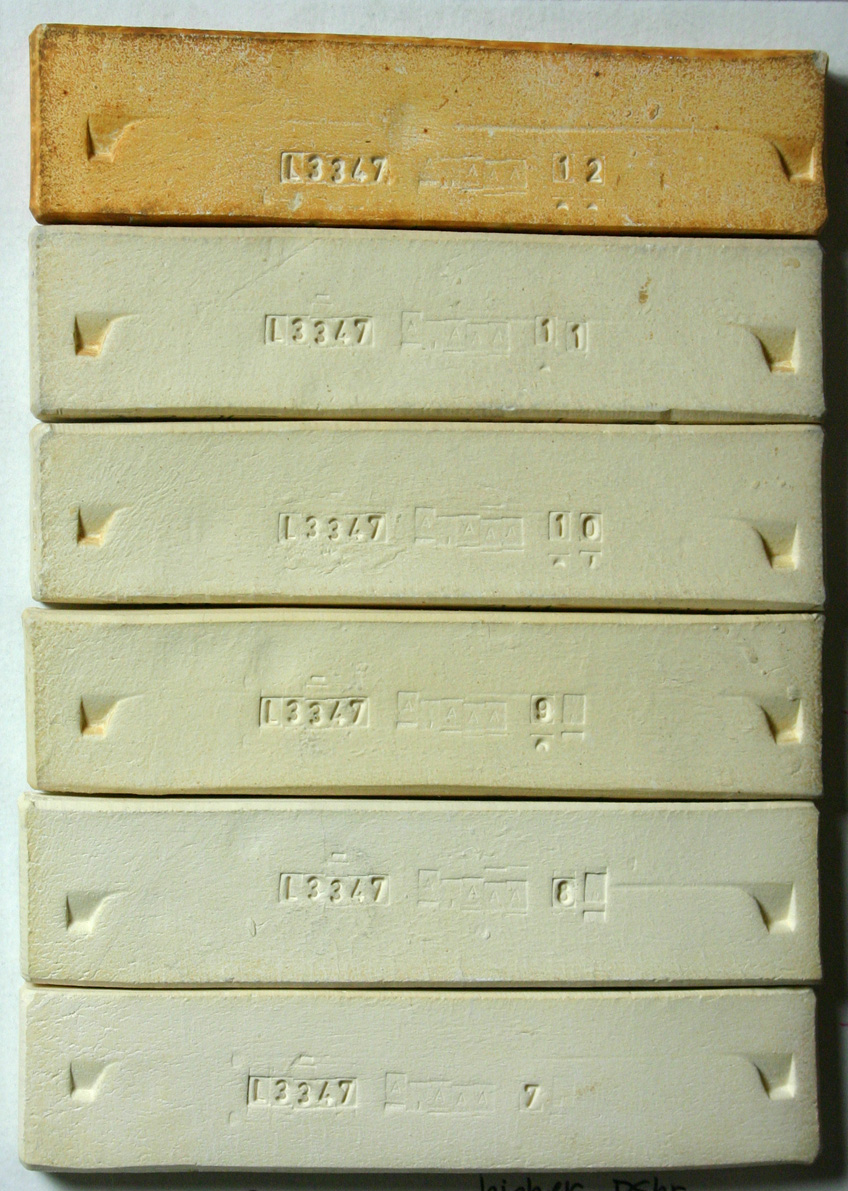

Gleason ball clay fired test bars from cone 7-11 oxidation and cone 10 reduction.

Click for 1191% larger


By Tony Hansen

XML for Import into INSIGHT

<?xml version="1.0" encoding="UTF-8"?> <material name="Gleason Ball Clay" descrip="Fine grainding plastic ball clay" searchkey="" loi="0.00" casnumber="70694-09-6"> <oxides> <oxide symbol="CaO" name="Calcium Oxide, Calcia" status="" percent="0.090" tolerance=""/> <oxide symbol="MgO" name="Magnesium Oxide, Magnesia" status="" percent="0.040" tolerance=""/> <oxide symbol="K2O" name="Potassium Oxide" status="" percent="0.320" tolerance=""/> <oxide symbol="Na2O" name="Sodium Oxide, Soda" status="" percent="0.070" tolerance=""/> <oxide symbol="P2O5" name="Phosphorus Pentoxide" status="" percent="0.110" tolerance=""/> <oxide symbol="TiO2" name="Titanium Dioxide, Titania" status="" percent="1.480" tolerance=""/> <oxide symbol="Al2O3" name="Aluminum Oxide, Alumina" status="" percent="26.280" tolerance=""/> <oxide symbol="SiO2" name="Silicon Dioxide, Silica" status="" percent="58.800" tolerance=""/> <oxide symbol="Fe2O3" name="Iron Oxide, Ferric Oxide" status="" percent="1.410" tolerance=""/> <oxide symbol="MnO" name="Manganous Oxide" status="" percent="0.010" tolerance=""/> </oxides> <volatiles> <volatile symbol="LOI" name="Loss on Ignition" percent="11.600" tolerance=""/> <volatile symbol="SO3" name="Sulfur Trioxide" percent="0.020" tolerance=""/> </volatiles> </material>
